The basics
What the Stream Gateway does
Stream Gateway by CEF receives SRT and HLS and converts them to UDP unicast, multicast, HLS and DASH, plus HDMI and composite video. It runs on a Prime Box, a Raspberry Pi or a Linux server, managed from one cloud panel with automatic failover.
One reliable path from contribution to distribution.
Where Stream Gateway wins?
In any TV or video project where professional SRT feed is needed for UDP/HLS/DASH distribution.
Built for continuous 24/7 delivery, for any business like CATV, IPTV, OTT, Hospitality TV and more.
Cable TV operators
Receive contribution over SRT and output UDP multicast for your HeadEnd and multiplexers.
Hotels & hospitality
Bring the channel lineup in over SRT or HLS and deliver UDP, HLS or DASH to in-room TVs.
IPTV / OTT providers
Turn SRT and HLS sources into clean multicast, HLS or DASH for your network.
System integrators
Roll out a fleet of efficient gateways and manage every site from one cloud panel.
How it works
From SRT / HLS contribution to UDP, HLS & DASH distribution
Ingest
Point the gateway at your SRT source in caller mode, or an HLS source. A full multiplex is split into programs automatically.
Convert
Each program becomes UDP unicast, UDP multicast, HLS or DASH, exactly how your network needs it.
Deliver & monitor
Stream 24/7 to your HeadEnd or TVs, with failover, live monitoring and email alerts on every program.
Features
Everything you need to run a channel around the clock
SRT input (caller)
Connect to your SRT source in caller mode, either a full multiplex or a single program.
HLS input
Pull an HLS source and turn it into UDP or a clean HLS or DASH output.
UDP unicast & multicast
Deliver to set-top boxes, multiplexers and middleware on your IP network.
HLS and DASH output
A ready-to-use HLS or DASH URL for every program.
Automatic failover
Primary and backup sources with automatic switchover and reconnect.
Real-time monitoring
Per-program bitrate, packet loss, RTT and jitter, all live.
Cloud fleet panel
See and configure every device remotely from one cloud dashboard.
Email alerts
Notified on signal loss, black screen or pixelation, per program.
Up to 4 / 20 / 250 streams
Up to 4 streams on a Prime Box, 20 per Raspberry Pi and 250 on Linux.
HDMI and composite output
Send a program to HDMI (H.264 / AAC) on Prime Box, Pi 5 and Linux, or to composite video (RCA) on Prime Box; preview any program in the browser.
REST API
Automate configuration and provisioning from your own systems.
Per-device licensing
Each device is licensed individually and bound to its hardware.
Compatible hardware
Select and buy from your hardware provider

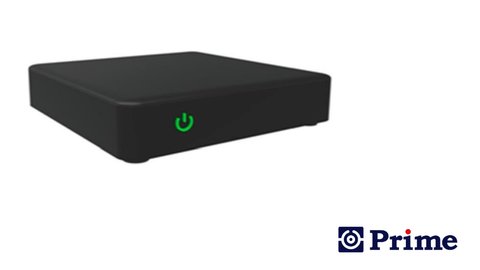

Prime Box
An efficient solution, perfect for distributing up to 4 channels. IP output, plus HDMI output (H.264 / AAC) and composite video (RCA).

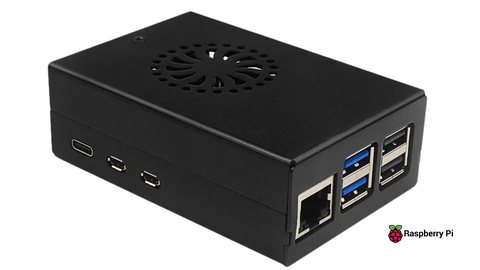

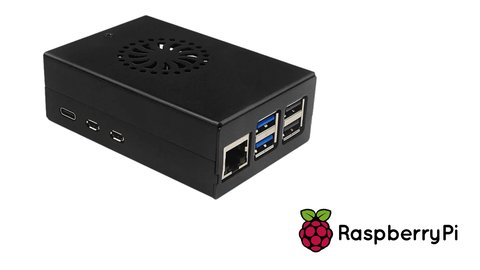

Raspberry Pi 4 / 5
Compact, with rack-mount options. IP output, plus HDMI output (H.264 / AAC) on the Pi 5 for local monitoring.

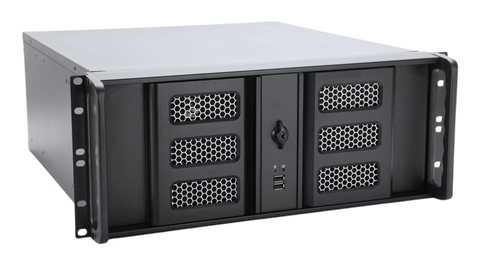

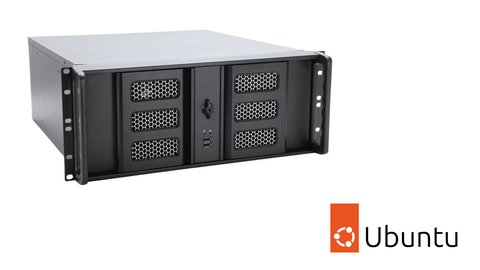

Ubuntu (Linux) Server
Run up to 250 streams on your own Linux server, with IP and HDMI output. Capacity scales with your hardware.
Built for 24/7
Secure and reliable software for high demand operations
Every capability is there to keep your channels on air. Automatic failover, live monitoring and per-program alerts come built in.
| Built for delivery | Stream Gateway by CEF | Traditional hardware gateway | Enterprise hardware gateway |
|---|---|---|---|
| SRT → UDP unicast & multicast | ✔ | ✔ | ✔ |
| Unicast output (HLS/DASH) | ✔ | partial | partial |
| Automatic failover | ✔ | partial | extra |
| Real-time monitoring & alerts | ✔ | extra | extra |
| Cloud fleet management | ✔ | ✘ | partial |
| Continuous 24/7 operation | ✔ | ✔ | ✔ |
The panels
Global management with local and cloud control.
The local panel
On the device, on your own network: the SRT input and its failover, the UDP output, the detected programs, a live preview and the network stats.
- SRT input with a failover source
- UDP output and an HLS or DASH link per program
- Detected programs and live preview
- RTT, jitter and bandwidth, in and out
The cloud panel
Every device in the fleet from one place, grouped, with its status, version and licence, and the actions you need without going on site.
- Remote configuration of every device
- Start and stop streams, restart, update, reboot
- Status, version and licence per device
- One-line installer for a new gateway
Receive SRT with automatic failover
Point the gateway at your SRT source in caller mode. Add a failover source and it switches over on its own when the primary drops.
- Caller-mode SRT input
- Primary + failover with automatic switchover
- Passphrase, latency and bandwidth control
Output to UDP multicast and watch it live
Each detected program maps to its own UDP multicast address. Preview any program in the browser and keep an eye on the network in real time.
- UDP unicast & multicast output
- Per-program multicast addressing
- Live RTT, jitter and bandwidth
Up to 250 sources per device!
An incoming multiplex is split into program slots automatically, and any free slot can take its own SRT or HLS source. Linux scales to as many as 250 streams on capable hardware.
- Auto-split of MPTS into slots
- Individual SRT / HLS source per slot
- Up to 4 on Prime Box · 20 on Raspberry Pi · 250 on Linux
A ready-to-use HLS or DASH link per program
Every program also gets a clean HLS URL and a DASH URL on your network. Copy it and hand it to a player, middleware or app.
- HLS and DASH output alongside UDP
- One HLS and one DASH URL per program
- HDMI on Prime Box, Pi 5 and Linux · composite on Prime Box
Email alerts that catch real failures
Get notified the moment a program goes wrong, not just when it stops. Detection covers signal loss, black screen and sustained pixelation.
- Signal loss, black screen, pixelation
- Email notifications per program
- Test before you rely on it
Manage your whole fleet from the cloud
See every gateway in one place, with online status, version and license. Configure or control any of them remotely, from anywhere.
- All devices grouped in one view
- Remote config: SRT, UDP output, sources
- Start / stop streams, update, reboot remotely
